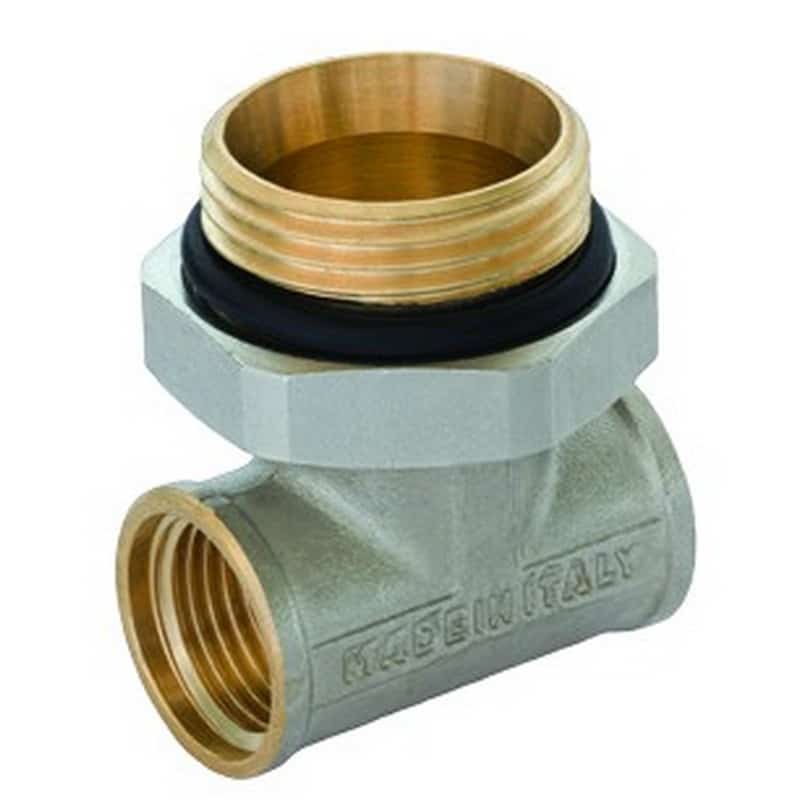

Article 584 M CO
terminal for bar manifolds
Description
| Product code | Size(mm) | Bag(nr) | Box(nr) |
|---|---|---|---|
| 3584MCO01N | 1" | 10 | 100 |
| 3584MCO04N | 1" 1/4 | 5 | 70 |
| 3584MCO34N | 3/4" | 10 | 120 |

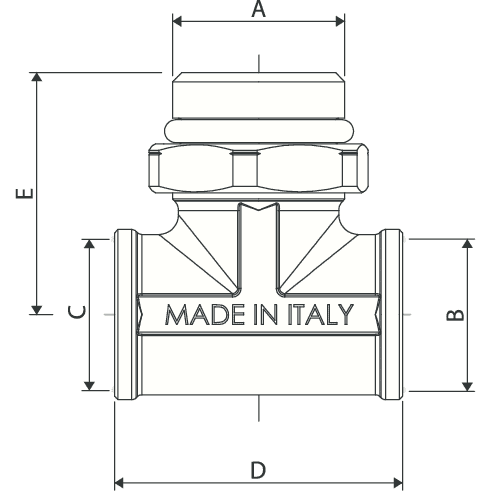

Quoted Design
Quotes
| Product code | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
|---|---|---|---|---|---|
| 3584MCO01N | G1” ISO 228 | G1/2” ISO 228 | G1/2” ISO 228 | 42 | 44 |
| 3584MCO04N | G1”1/4ISO228 | G1/2” ISO 228 | G1/2” ISO 228 | 46 | 46 |
| 3584MCO34N | G3/4” ISO 228 | G1/2” ISO 228 | G1/2” ISO 228 | 37 | 44 |
