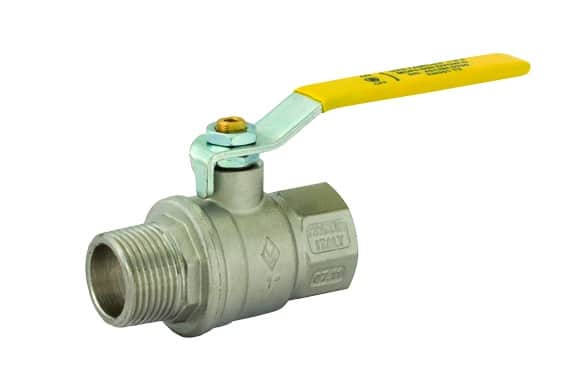

Gas ball valve 850 MF
Description
| Product code | Small Box(nr) | dn | rp |
|---|---|---|---|
| 3850MF01LG | 6 | 25 | 1” |
| 3850MF02LG | 1 | 50 | 2” |
| 3850MF112LG | 2 | 40 | 1”1/2 |
| 3850MF114LG | 4 | 32 | 1”1/4 |
| 3850MF12LG | 20 | 15 | 1/2” |
| 3850MF34LG | 12 | 20 | 3/4” |

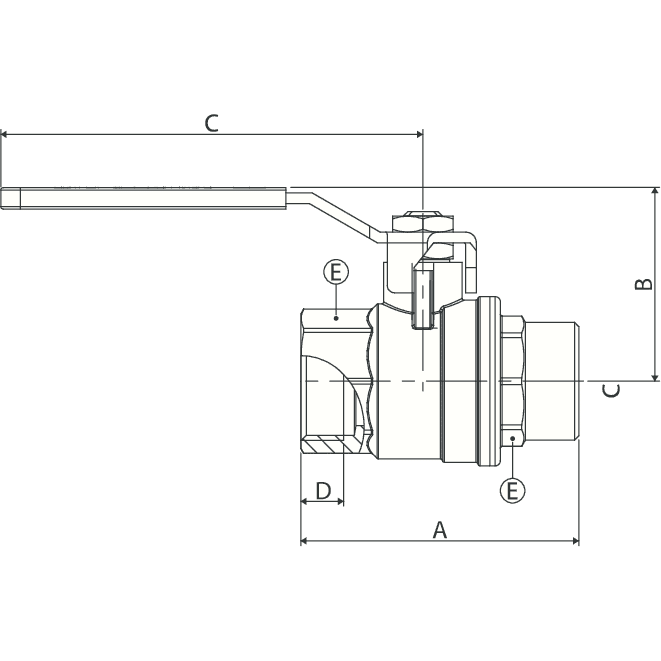

Quoted Design
Quotes
| Product code | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
|---|---|---|---|---|---|
| 3850MF01LG | 88,5 | 53 | 120 | 19 | CH 38 |
| 3850MF02LG | 130,5 | 83 | 162 | 25,7 | CH 67 |
| 3850MF112LG | 109,5 | 76 | 162 | 21,4 | CH 54 |
| 3850MF114LG | 102,5 | 59 | 120 | 21,4 | CH 48 |
| 3850MF12LG | 68 | 41 | 85 | 15 | CH 25 |
| 3850MF34LG | 75 | 44 | 85 | 16,3 | CH 31 |
