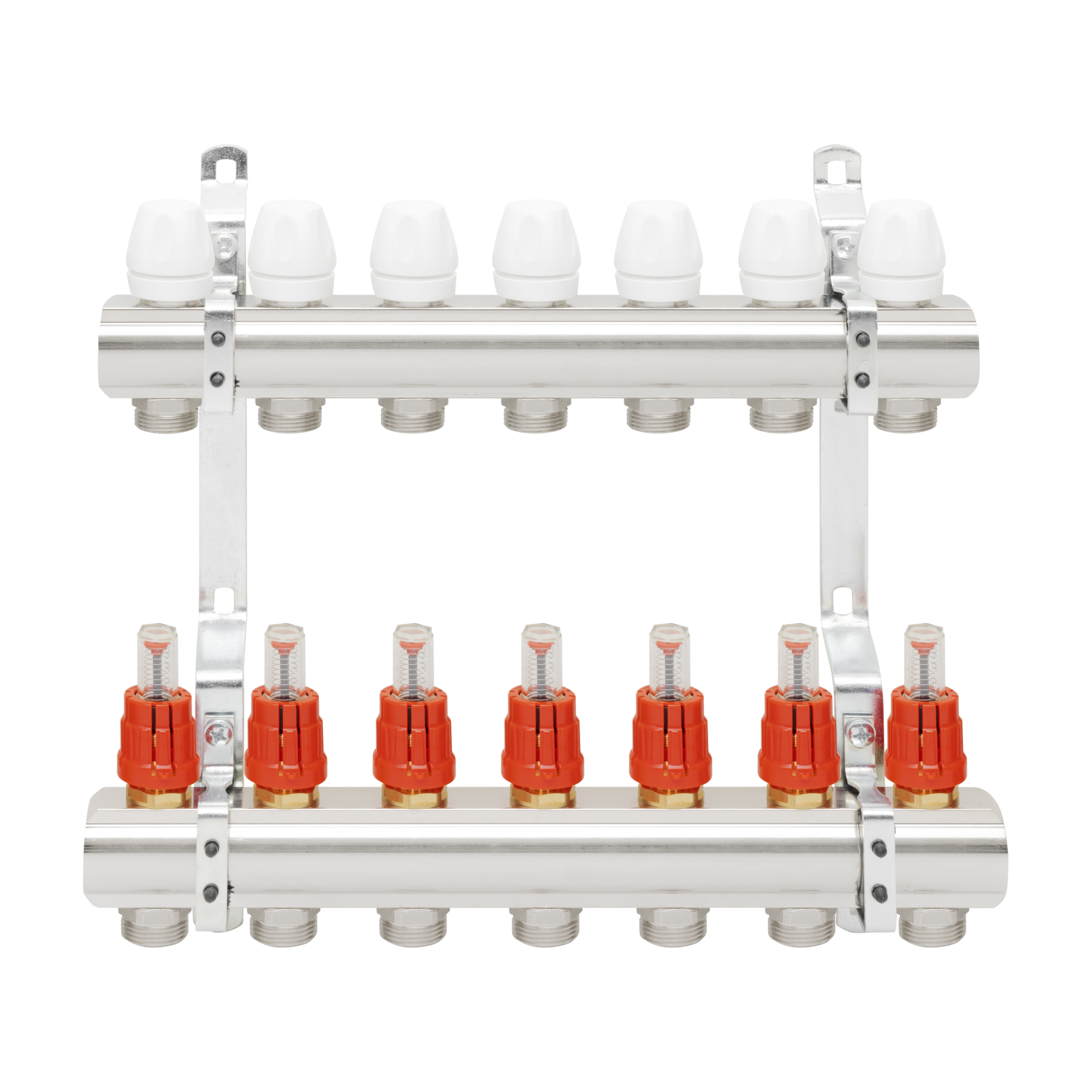

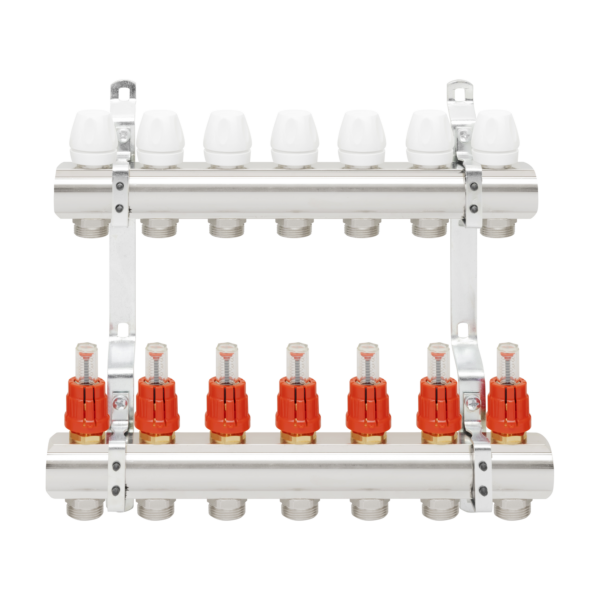

Pre-assembled 1″ manifold
Description
Pre-assembled 1" nickeled brass manifold kit for radiant floor heating system with flowmeters, 3/4" offtakes eurocone with 50 mm interaxle spacing, built with a delivery manifold with flowmeters (0 - 5l/min) and a return manifold with closures fitted for electrothermal heads.
| Product code | Size(mm) | Vie(nr) | Box(nr) |
|---|---|---|---|
| 394002S | 1" x 3/4" | 2+2 | 1 |
| 394003S | 1" x 3/4" | 3+3 | 1 |
| 394004S | 1" x 3/4" | 4+4 | 1 |
| 394005S | 1" x 3/4" | 5+5 | 1 |
| 394006S | 1" x 3/4" | 6+6 | 1 |
| 394007S | 1" x 3/4" | 7+7 | 1 |
| 394008S | 1" x 3/4" | 8+8 | 1 |
| 394009S | 1" x 3/4" | 9+9 | 1 |
| 394010S | 1" x 3/4" | 10+10 | 1 |
| 394011S | 1" x 3/4" | 11+11 | 1 |
| 394012S | 1" x 3/4" | 12+12 | 1 |
| 394013S | 1" x 3/4" | 13+13 | 1 |

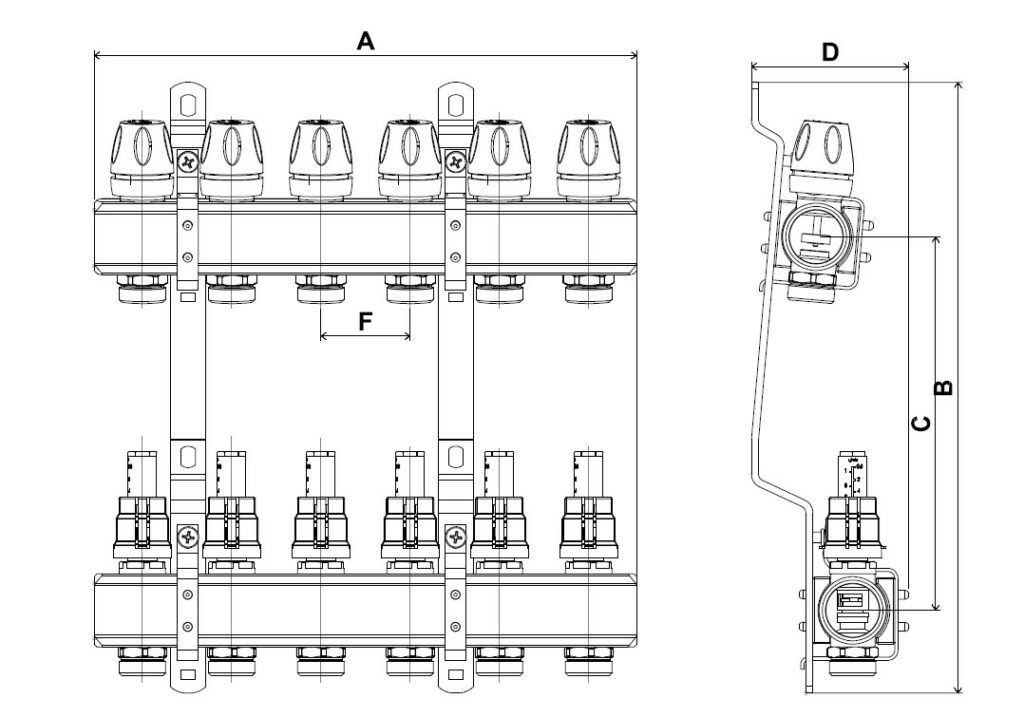

Quoted Design
Quotes
| Product code | A(mm) | C(mm) | D(mm) |
|---|---|---|---|
| 394002S | 157 | 209 | 88 |
| 394003S | 207 | 209 | 88 |
| 394004S | 257 | 209 | 88 |
| 394005S | 307 | 209 | 88 |
| 394006S | 357 | 209 | 88 |
| 394007S | 407 | 209 | 88 |
| 394008S | 457 | 209 | 88 |
| 394009S | 507 | 209 | 88 |
| 394010S | 557 | 209 | 88 |
| 394011S | 607 | 209 | 88 |
| 394012S | 657 | 209 | 88 |
| 394013S | 707 | 209 | 88 |
